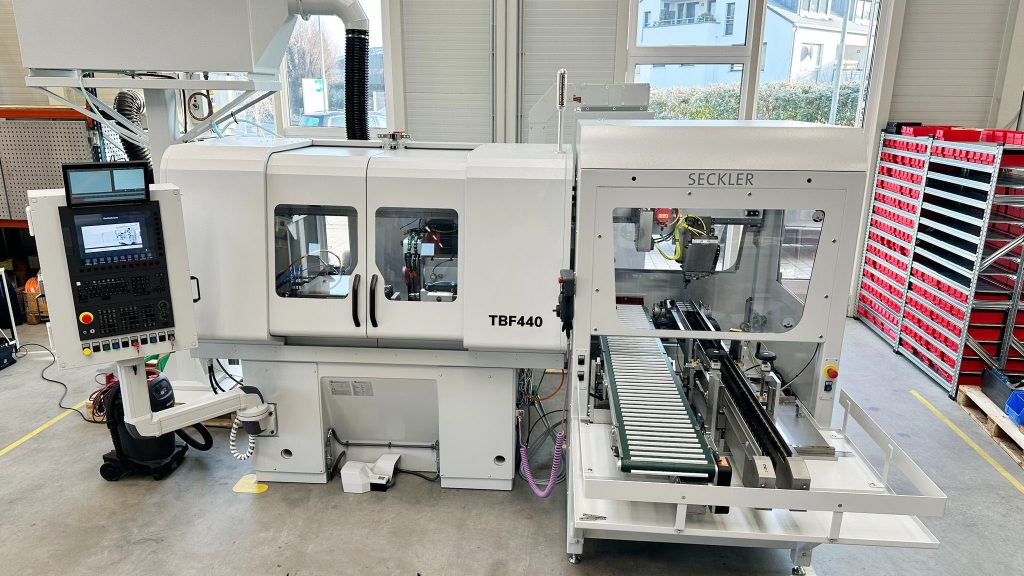

Switzerland TSCHUDIN CNC cylindrical grinding machine

Posted by：EurasiacomDate Posted：2024-3

Brand：TSCHUDIN? ? Type：TBF440 ? Category：cylindrical grinder

Technical Parameter

Technical specifications Distance between centres in mm	430
Centre height in mm	100(opt. 150)
Grinding length in mm	400
Power requirement in kVa	21
Weight in kg	4.400
Axle drive X-axis speed in mm/min	8.000
X-axis resolution in μm in mm/min	0,1
Z-axis speed in mm/min	8.000
Z-axis resolution in μm	0,1
Workhead Spindle taper	MK5
Workpiece weight between centres	100
Overhung workpiece weight including	80
clamping device in kg Pivotability	+30 ° / -45 °
Spindle speeds	20 – 1.000
Grinding wheelhead Grinding wheel diameter in mm	400
Grinding wheel width in mm	80
Pivotability left	9 °
Pivotability right	9 °
Motor power in kW	8
X-axis adjustment range in mm	340
Longitudinal slide Longitudinal slide in mm	480
Pivotability of the workpiece table	+/- 9 °
Tailstock Taper	MK3
Quill travel in mm	20 (opt. 60 or 120)
Space requirement (WxHxD) Space requirement in mm	2.500×4.400×2.350
