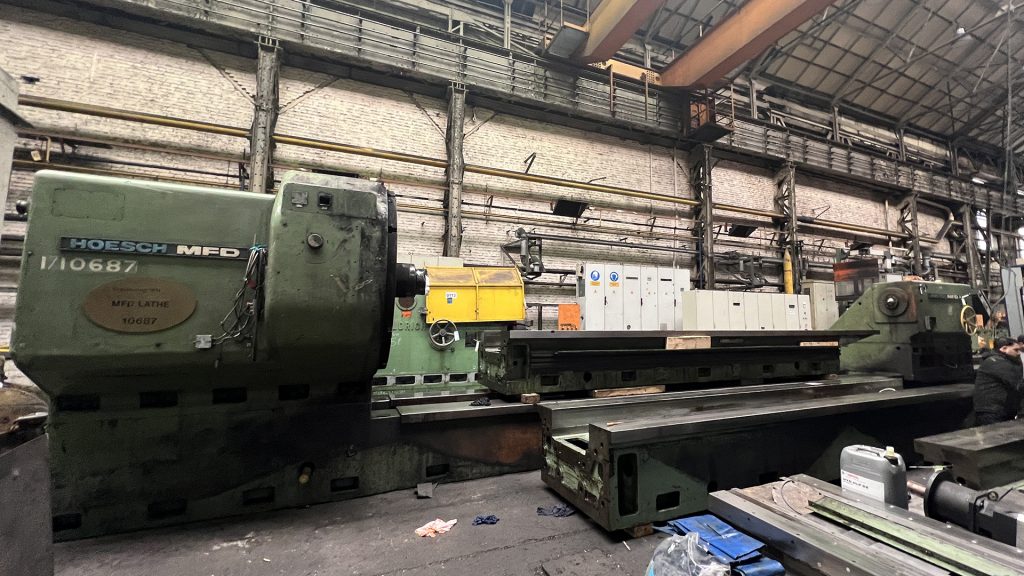

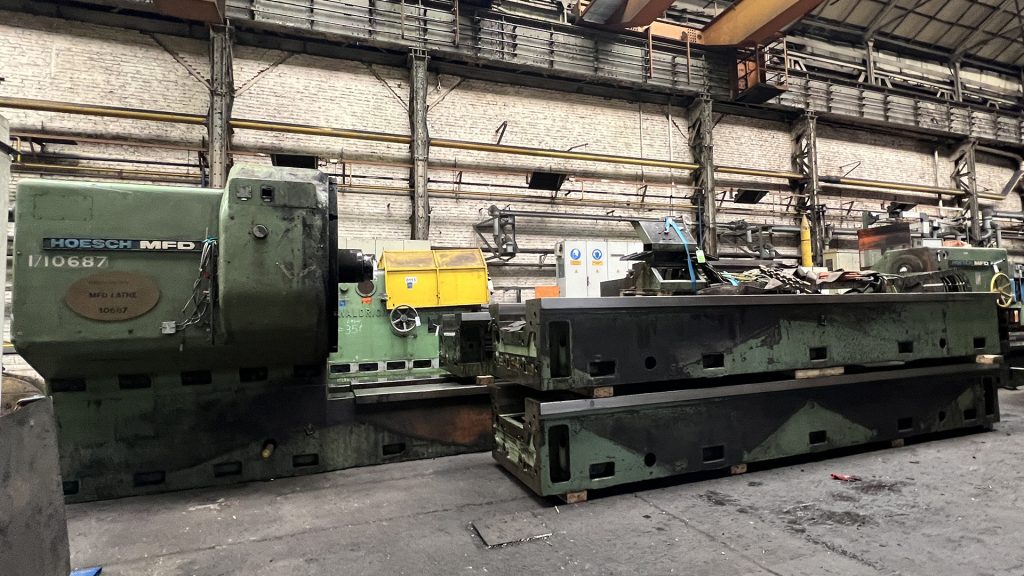

Brand：Hoesch MFD ? Type：D2000 SGK-1? ? Category：Heavy Duty Lathe
 |
 |
 |
 |
 |
 |
 |
 |
Technical Parameter
| Year of Manufacture | 1973 |
| Control System | CNC |
| Control System | Siemens |
| Swing Diameter Over Bed | 2235 mm |
| Turning Length | 12200 mm |
| Control | Siemens |

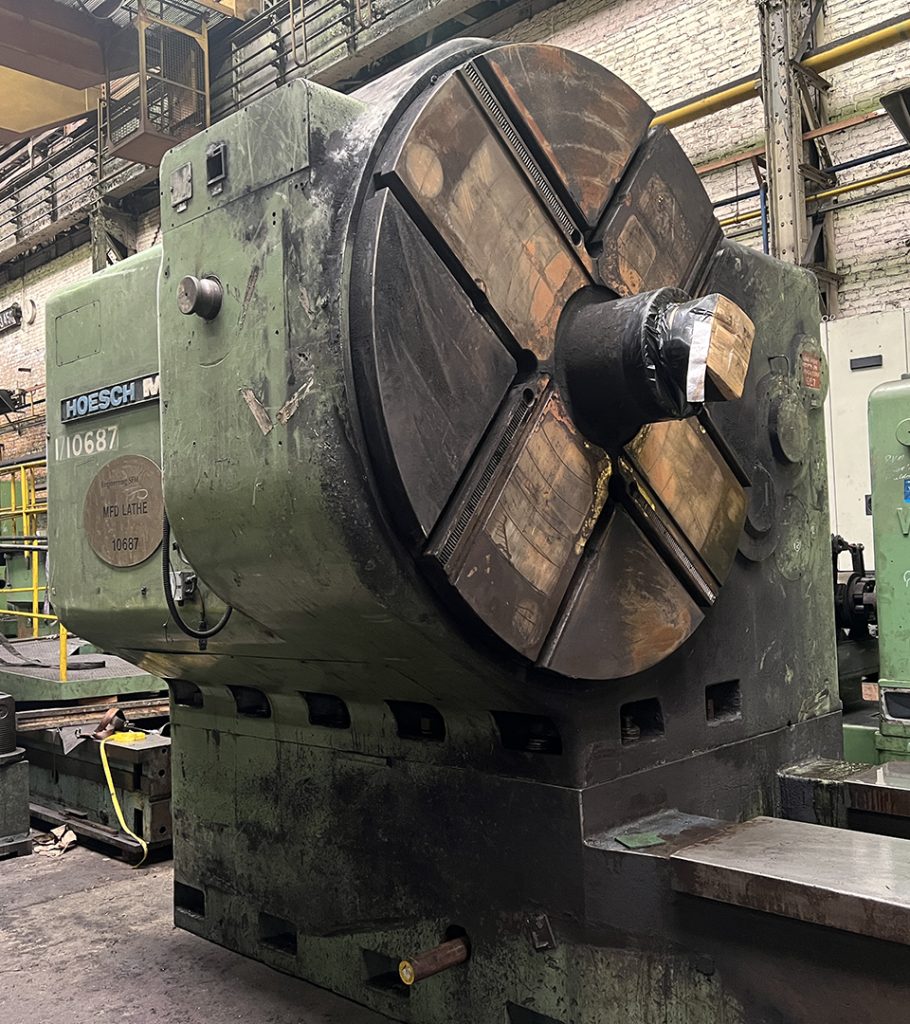

| Faceplate Diameter | 2000 mm |
| Space Required | Approx. 7 x 22 m |
| Machine Weight Approx. | 220 tons |
| Space Requirement | 7 x 22 m + Control Cabinet 4.7 x 0.5 x 2 m |
| Faceplate | 2006 mm |
| Center Height | 1,499 mm |
| Swing Diameter Over Bed | 2997 mm |
| Turning Length | 12192 mm |
| Min/Max Workpiece Diameter Held by Chuck | ?457/1600 mm |
| Max Workpiece Weight | 110 tons |
| Speed Range | 0.5-140 rpm (300 HP motor) |
| Feed Range | 0.0118-7.08 inches/rev |
| Steady Rest Holding Range | ?356-902 mm |
| Taper Turning Depth | 508 mm (Inductive) |
| Max Cutting Force | 30,000 N·m |
| Twin-Steady Rest Holding Range | ?356-902 mm, 50-ton capacity, roller type |
| Max Swing Diameter Over Carriage | 2,000 mm |
| Center Height Over Bed | 1,500 mm |
| Distance Between Centers | 12,000 mm |
| Max Workpiece Weight | 100,000 kg |
| Height from Shop Floor to Machine Spindle Center | 2,200 mm |
| Spindle Diameter | 670 mm |
| Faceplate Diameter | 2,000 mm |
| Max Chuck Holding Diameter | 1,600 mm |
| Min Chuck Holding Diameter | 455 mm |
| Main Drive Power | 220 HP |
| Max Faceplate Torque | 30,000 kg·m |
| Key Speed | 5.7 rpm |
| Max Allowable Main Cutting Force | 30,000 kg |
| Longitudinal Feed Rate | 0.3–120 mm/min |
| Cross Feed Rate | 0.3–120 mm/min |
| Longitudinal Rapid Traverse | 2,000 mm/min |
| Cross Rapid Traverse | 1,000 mm/min |
| Max Taper Turning Depth | 500 mm |
| Max Tool Post Length (From Cross Slide Front Edge to Tool Post Front Edge) | 700 mm |
| Tool Post Width | 60 mm |
| Cutting Edge Height of Tool Unit | 60 mm |
| Cutting Edge Height of Shank-Type Tool on Clamping Table | 100 mm |
| Upper Tool Post Travel | 820 mm |
| Tailstock Quill Diameter | 580 mm |
| Quill Adjustment | 150 mm |
| Dead Center Angle | 80° |
| Rapid Traverse Speed | 2,000 mm/min |
| Positioning Speed | 500 mm/min |
| Steady Rest – Holding Range | 350–900 mm |
| Steady Rest – Load Capacity | 50,000 kg |
