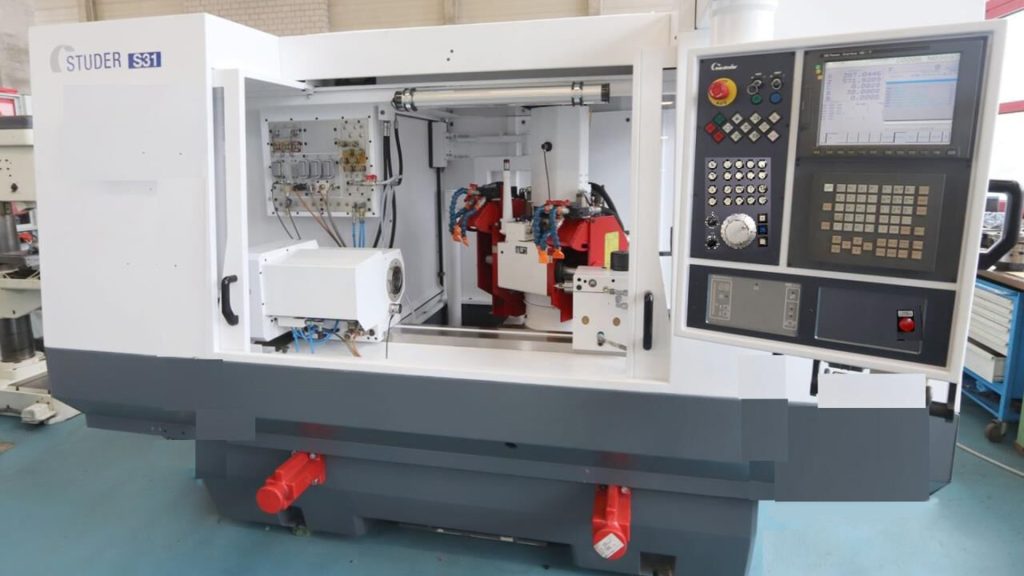

Brand：Studer? ? Type：S 31? ? Category：cylindrical grinder
 |
 |
 |
 |
 |
 |
 |
 |
Technical Parameter
| Centre height | 175 mm |
| Distance between centres | 650 mm |
| Workpiece weight on centres max. | 80 kg |
| Grinding wheel right and left hand | |
| Grinding wheel Diameter | 500 mm |
| Grinding wheel Width | 63 mm |
| Grinding wheel Bore | 203 mm |
| Turret grinding tool holder for ext. and int. | 2+1 |
| Grinding wheel speeds from | 1400 rpm |
| Grinding wheel speeds up to | 3200 rpm |
| Rotatable grinding spindle head (b-axis) | 1 ° |
| Peripheral speed | 50 m/s |
| Longitudinal slide Max. travel | 800 mm |
| Transversal slide Max. travel | 254 mm |

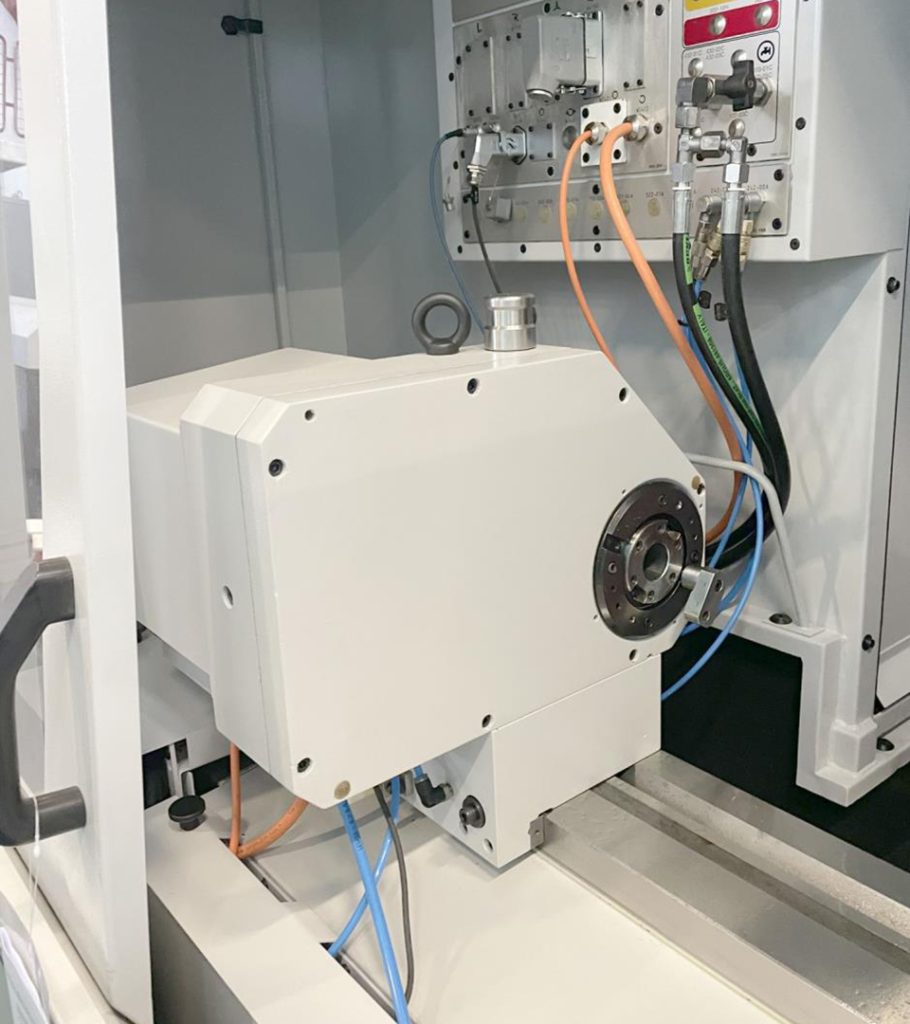

| Work piece spindle head speeds from | 1 rpm |
| Work piece spindle head speeds up to | 1000 rpm |
| Typing speed | 30 rpm |
| rotatable | -15 / + 195 ° |
| taper in spindle | MT 4 |
| Required power | 2.8 kW |

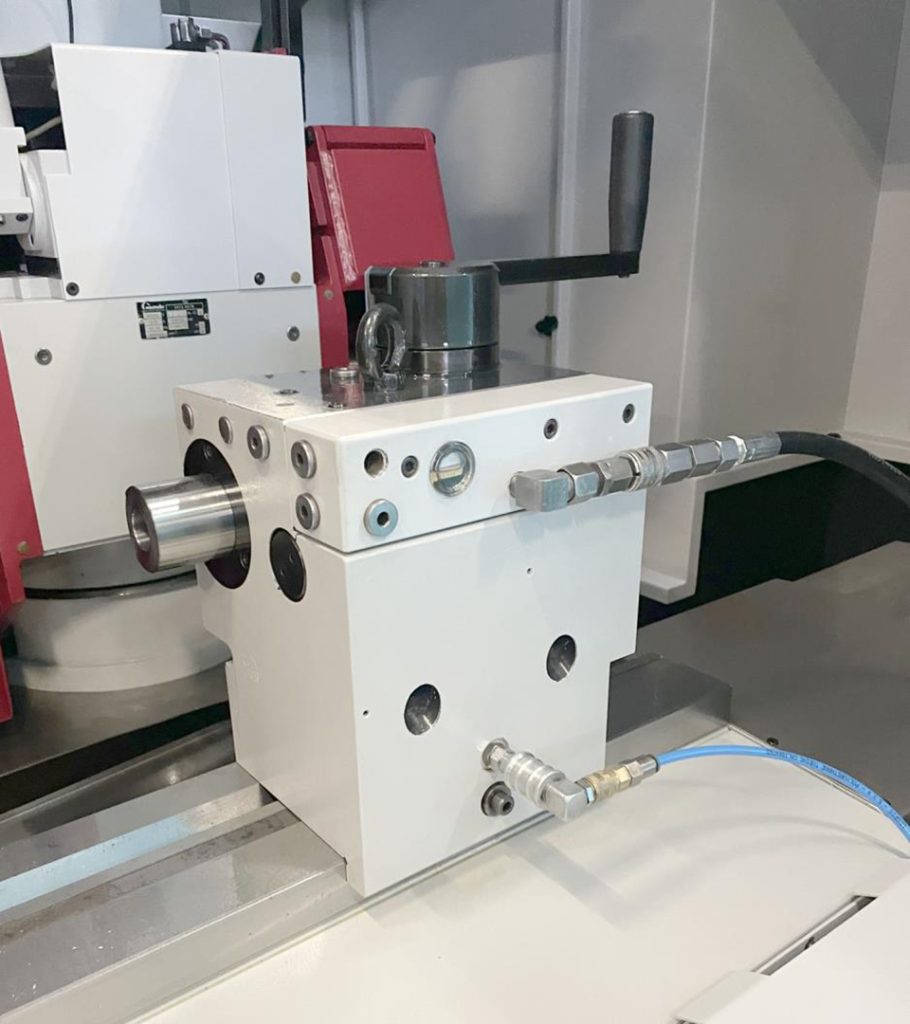

| Tailstock con regolazione micrometrica | |
| Taper in tailstock | 3 MT |
| Spindle stroke | 35 mm |
| Spindle diameter | 50 mm |
| Air connect | 5 – 7 bar |
| Voltage | 50 Hz 3x 380 Volt |
| Grinding spindle motor | 7.5 kW |
| Total power required | 32 kVA |
| Machine’s weight about | 5200 kg |
| Overall dimensions machine Length | 3000 mm |
| Overall dimensions machine Width | 2200 mm |
| Overall dimensions machine Height | 2100 mm |
| Pneumatic lifting | |
| Preparation for coolant device | |
| Touch probe | MARPOSS |
| Internal grinding attachment Number of spindles | 1 |
| Internal grinding attachment Grinding wheel speeds up to | 30000 rpm |
| Lamp | |
| RS-232 Interface |
